File Access Monitor

install inotify-tools

$ sudo apt install inotify-tools

The inotifywait utility can be used to wait and react to filesystem events.

$ inotifywait work/aaa.txt
Setting up watches.
Watches established.
work/aaa.txt OPEN

Use -r (--recursive) option to include subdirectories

$ inotifywait -r /home/wweb/www/html/dokuwiki
Setting up watches.  Beware: since -r was given, this may take a while!
Watches established.
/home/wweb/www/html/dokuwiki/data/pages/ OPEN zip.txt

-m, –monitor	Instead of exiting after receiving a single event, execute indefinitely. The default behaviour is to exit after the first event occurs.

$ inotifywait -m -r /home/wweb/www/html/dokuwiki

-d, –daemon	Same as –monitor, except run in the background logging events to a file that must be specified by –outfile. Implies –syslog.

$ inotifywait -d -o <log_filename> -r /home/wweb/www/html/dokuwiki

<log_filename> must be an existing file.

–timefmt <fmt>	Set a time format string as accepted by strftime(3)

$ inotifywait -d --timefmt "%a, %d %b %Y %T %z" --format "%T %w %f %e" -o ~/log/inotifylog.txt -r /home/wweb/www/html/dokuwiki

$ inotifywait -d --timefmt "%a, %d %b %Y %T %z" --format "%T %w %f %e" -o ~/log/inotifylog_IIS.txt -r /mnt/e/inetpub/wwwroot/dokuwiki

Don't work on NTFS even by WSL.

Keep Detect Files' Access by inotifywait

$ cat /usr/local/bin/inwatch.sh
#!/usr/bin/env bash
mkdir -p /home/pctr/log
LOGFILE=/home/pctr/log/inotify.log
echo "start inotifywait. Watching.." >> $LOGFILE
inotifywait -m --timefmt "%a, %d %b %Y %T %z" --format "%T %w %f %e" -e modify -e close_write -e moved_to -e moved_from -e move -e move_self -e create -e delete -e delete_self -e unmount -o $LOGFILE -r --fromfile /usr/local/bin/inotify.list

We will then register this shell program as a system service. So the -m option is better.

$ cat /usr/local/bin/inotify.list
/home/wweb/www/html/dokuwiki
@/home/wweb/www/html/dokuwiki/data/pages/.git
@/home/wweb/www/html/dokuwiki/data/locks
@/home/wweb/www/html/dokuwiki/data/cache
@/home/wweb/www/html/dokuwiki/data/index
@/home/wweb/www/html/dokuwiki/data/meta

@<file>	When watching a directory tree recursively, exclude the specified file from being watched. The file must be specified with a relative or absolute path according to whether a relative or absolute path is given fo watched directories.
–fromfile <file>	Read filenames to watch or exclude from a file, one filename per line. If filenames begin with @ they are excluded as described above.

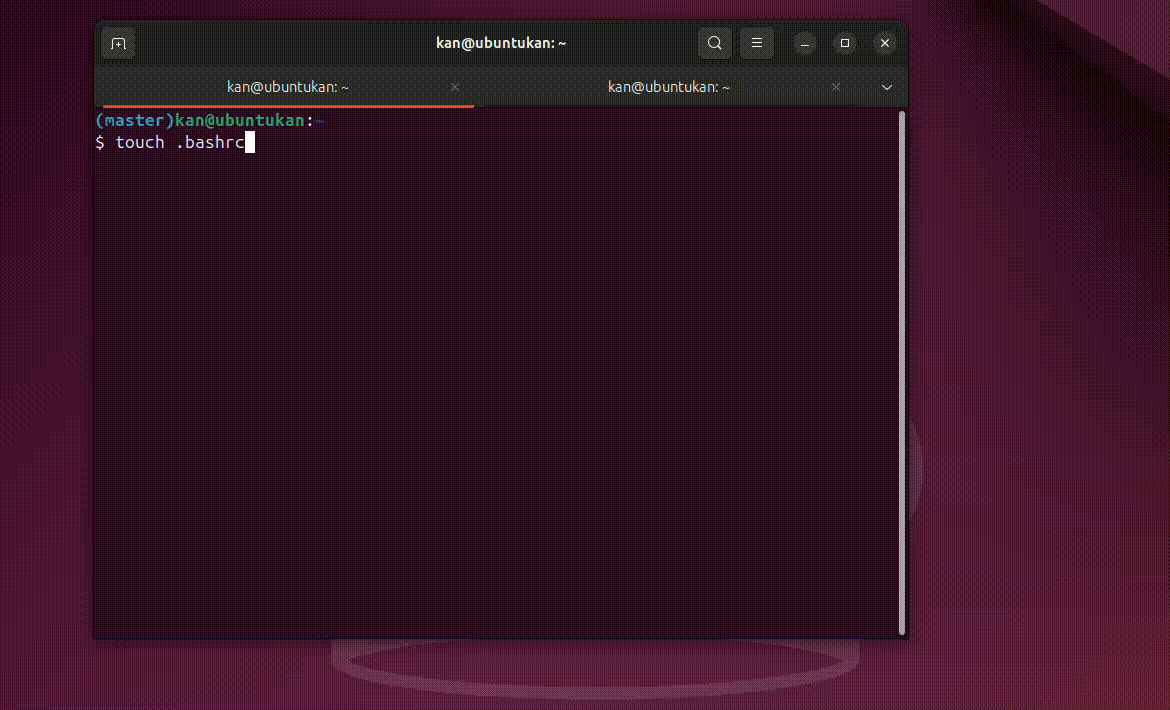

Alert When Files' Access Detected

$ cat /usr/local/bin/ialert.sh
#!/usr/bin/env bash
mkdir -p /home/pctr/log
LOGFILE=/home/pctr/log/inotify.log
LOGFILETMP=/home/pctr/log/inotify.tmp
while inotifywait -q -e modify $LOGFILE;
do
  tail -10 /home/pctr/log/inotify.log > $LOGFILETMP
  kdialog --textbox $LOGFILETMP 1024 256
  tail -10 $LOGFILE | mail -s "[inotifywait alert] File Access Detected" pctresearch@pctresearch.com
done

If you want to use the mail feature, you must first install and configure Postfix.

Other kdialog

$ sudo apt install kdialog
$ kdialog --error "File Access Detected"

$ kdialog --textbox inotifylog.txt 512 256

Registering in Syetem Service (inwatch.sh only)

$ cd /etc/systemd/system/
$ sudo touch file-access-detect.service

[Unit]
Description=Detect Accessing to Files
After=network.target
StartLimitIntervalSec=20
StartLimitBurst=3

[Service]
Type=simple
Restart=always
RestartSec=10
User=root
ExecStartPre=
ExecStart=/usr/local/bin/inwatch.sh
ExecStartPost=
ExecStop=
ExecReload=

[Install]
WantedBy=multi-user.target

$ sudo systemctl daemon-reload
$ sudo systemctl enable file-access-detect.service
Created symlink /etc/systemd/system/graphical.target.wants/file-access-detect.service → /etc/systemd/system/file-access-detect.service.
$ sudo systemctl start file-access-detect.service

Registering Startup Application (ialert.sh only)

Ubuntu

$ cat ~/.config/autostart/ialert.sh.desktop
[Desktop Entry]
Type=Application
Exec=/usr/local/bin/ialert.sh &
Hidden=false
NoDisplay=false
X-GNOME-Autostart-enabled=true
Name[en_US]=ialert
Name=ialert
Comment[en_US]=Alert when ~/log/inotify.log is updated.
Comment=Alert when ~/log/inotify.log is updated.

Wsl

$ cat /etc/wsl.conf
[boot]
# systemd support
systemd=true
command = "/usr/local/bin/ialert.sh &"

[user]
# User settings
default=pctr

[network]
# generate /etc/hosts
generateHosts = false
# generate /etc/resolv.conf
generateResolvConf = false

File Access Detection case by case

location of files	access by	wsl(inotify)	windows(Everything)
inside of wsl	wsl	detect	NG
	windows	detect	△ 1)
outside of wsl	wsl	NG	detect
	windows	NG	detect

1) when windows opened the file, windows make the *.link file which can be detected. But when windows modified it, Everything can't detect it.

Monitor Configure Files

You can easily monitor configure files using the Manage Configuration Files with Git technique.

$ git ls-tree -r master --name-only /home/pctr/
/home/pctr/.bash_logout
/home/pctr/.bashrc
/home/pctr/.emulator_console_auth_token
/home/pctr/.gitconfig
/home/pctr/.gitignore
/home/pctr/.pam_environment
/home/pctr/.profile
/home/pctr/.selected_editor
/home/pctr/.ssh/authorized_keys
/home/pctr/.ssh/id_rsa
/home/pctr/.ssh/id_rsa.pub
/home/pctr/.ssh/known_hosts
/home/pctr/.sudo_as_admin_successful
/home/pctr/.tmux.conf
/home/pctr/.vimrc
/home/pctr/.vscode/argv.json
/home/pctr/.wget-hsts
/home/pctr/.xinputrc


$ git ls-tree -r --name-only master /etc/
.gitconfig
.gitignore
.pwd.lock
.updated
adduser.conf
aliases
apache2/apache2.conf
apache2/conf-available/charset.conf
apache2/conf-available/javascript-common.conf
apache2/conf-available/localized-error-pages.conf
apache2/conf-available/other-vhosts-access-log.conf
apache2/conf-available/security.conf
apache2/conf-available/serve-cgi-bin.conf
apache2/conf-enabled/charset.conf
apache2/conf-enabled/localized-error-pages.conf
apache2/conf-enabled/other-vhosts-access-log.conf
apache2/conf-enabled/security.conf
apache2/conf-enabled/serve-cgi-bin.conf
apache2/envvars
apache2/ports.conf
apache2/sites-available/000-default.conf
apache2/sites-available/default-ssl.conf
apache2/sites-available/wweb.conf
apache2/sites-available/wweb_ssl.conf
apache2/sites-enabled/wweb.conf
apache2/sites-enabled/wweb_ssl.conf
apg.conf
brltty.conf
ca-certificates.conf
cron.d/.placeholder
cron.d/anacron
...
dovecot/conf.d/10-ssl.conf
dovecot/dovecot.conf
...
host.conf
hostname
hosts
hosts.allow
hosts.deny
...
pam.conf
pam.d/atd
...
postfix/main.cf
...
samba/smb.conf
samba/smbshared.conf
...
ssh/ssh_config
ssh/ssh_host_rsa_key
ssh/ssh_host_rsa_key.pub
ssh/sshd_config
...
timeshift/default.json
timeshift/timeshift.json
...
ufw/applications.d/apache2-utils.ufw.profile
ufw/applications.d/cups
ufw/applications.d/dovecot-imapd
ufw/applications.d/dovecot-pop3d
ufw/applications.d/openssh-server
ufw/applications.d/postfix
ufw/applications.d/samba
ufw/sysctl.conf
ufw/ufw.conf
...

So, inotify.list should be :

$ cat /usr/local/bin/inotify.list
/home/wweb/www/html/dokuwiki
@/home/wweb/www/html/dokuwiki/data/pages/.git
@/home/wweb/www/html/dokuwiki/data/locks
@/home/wweb/www/html/dokuwiki/data/cache
@/home/wweb/www/html/dokuwiki/data/index
@/home/wweb/www/html/dokuwiki/data/meta
/home/pctr/.bash_logout
/home/pctr/.bashrc
/home/pctr/.emulator_console_auth_token
/home/pctr/.gitconfig
/home/pctr/.gitignore
/home/pctr/.pam_environment
/home/pctr/.profile
/home/pctr/.selected_editor
/home/pctr/.ssh/authorized_keys
/home/pctr/.ssh/id_rsa
/home/pctr/.ssh/id_rsa.pub
/home/pctr/.ssh/known_hosts
/home/pctr/.sudo_as_admin_successful
/home/pctr/.tmux.conf
/home/pctr/.vimrc
/home/pctr/.vscode/argv.json
/home/pctr/.wget-hsts
/home/pctr/.xinputrc
/etc/.gitconfig
/etc/.gitignore
/etc/.pwd.lock
/etc/.updated
/etc/adduser.conf
/etc/aliases
/etc/apache2/apache2.conf
/etc/apache2/conf-available/charset.conf
/etc/apache2/conf-available/javascript-common.conf
/etc/apache2/conf-available/localized-error-pages.conf
/etc/apache2/conf-available/other-vhosts-access-log.conf
/etc/apache2/conf-available/security.conf
/etc/apache2/conf-available/serve-cgi-bin.conf
/etc/apache2/conf-enabled/charset.conf
/etc/apache2/conf-enabled/localized-error-pages.conf
/etc/apache2/conf-enabled/other-vhosts-access-log.conf
/etc/apache2/conf-enabled/security.conf
/etc/apache2/conf-enabled/serve-cgi-bin.conf
/etc/apache2/envvars
/etc/apache2/ports.conf
/etc/apache2/sites-available/000-default.conf
/etc/apache2/sites-available/default-ssl.conf
/etc/apache2/sites-available/wweb.conf
/etc/apache2/sites-available/wweb_ssl.conf
/etc/apache2/sites-enabled/wweb.conf
/etc/apache2/sites-enabled/wweb_ssl.conf
/etc/apg.conf
/etc/brltty.conf
/etc/ca-certificates.conf
/etc/cron.d/.placeholder
/etc/cron.d/anacron
...

Path in inotify.list should be full pathname.

If inotify.list contains non-existent files or directories, the service will fail.
